Filter - Checkbox selection

The "Checkbox selection" element belongs to the "Filter" element category.

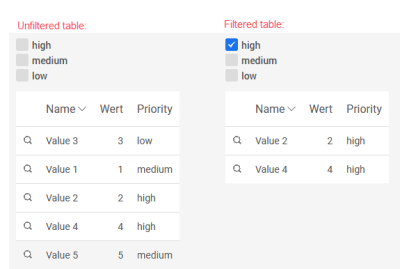

This filter can be used, for example, to filter a view table that is linked to the filter via a dependency using freely definable options.

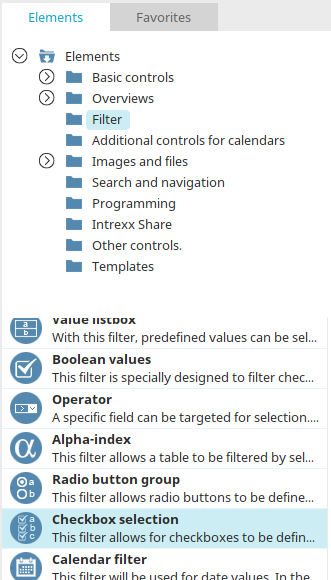

The "Option field" filter can be found in the "Applications" module in the "Elements" area. A new filter can be created by positioning the element on the workspace from here using drag & drop.

All information for creating elements can be found here.

The properties dialog of the filter opens automatically when a new filter is created. The properties dialog of an existing filter can be opened by double-clicking on the element on the workspace, via the "Properties" context menu or via the "Edit / Properties" main menu if the filter is selected on the workspace.

Properties

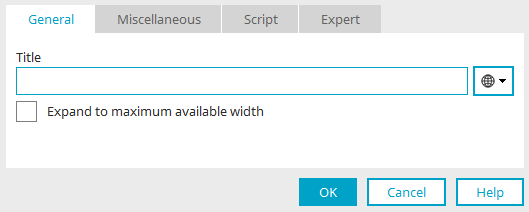

General

The title of the element can be defined here. All further information on this dialog can be found here.

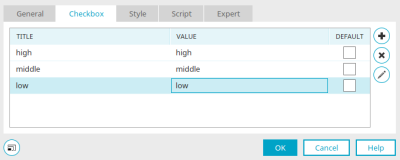

Checkbox

The checkboxes that are to be available in the filter can be defined here.

The title entered here will be shown for the checkbox in the browser. The value is used for filtering.

Preselection" column

Checkboxes that are marked here are also displayed as already marked in the browser.

Create new checkbox

Creates a new row.

Delete checkbox

Deletes the row currently selected.

Edit checkbox

Opens a dialog in which the title can be edited - also in multiple languages.
