Tips & Tricks - Convert PDFs to image files

This workshop demonstrates how PDF files, which are saved as attachments in an application, can be converted into image files (e.g. .png or .jpg) via a process. The example application for this workshop can be downloaded here and imported into your portal as usual. Activate the included process afterwards.

Application

The example application contains an edit page where a title and description can be entered. Furthermore, there is a file control for uploading PDFs in the browser. The images generated by the PDFs are stored in the subordinate data group "images".

The primary key of this data group has the type GUID.

The "images" data group contains a file data field where the link to the created images is saved by the process.

Process

The process responds whenever an entry is added or changed in the "PDFs" data group.

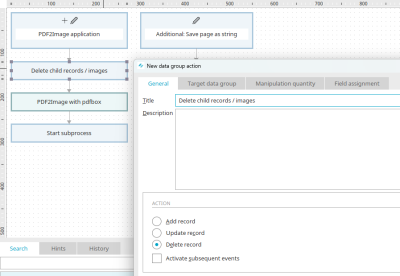

Afterwards, the images already stored in the child table should be deleted, in case an existing PDF is exchanged.

Then, the PDF file is broken down into images with a Groovy script action. The transformation of each PDF page is performed using the Apache Project "PDFBox" (https://pdfbox.apache.org). All necessary classes are included in the installation of Intrexx and simply need to be integrated into the Groovy script as an import.

import java.awt.toolkit
import java.awt.image.BufferedImage
import org.apache.pdfbox.pdmodel.*
import org.apache.pdfbox.loader
import org.apache.pdfbox.rendering.PDFRenderer
import java.io.IOException
import org.apache.pdfbox.pdmodel.PDPage
import org.apache.pdfbox.pdmodel.font.PDType1Font
import org.apache.pdfbox.pdmodel.PDPageContentStream
import javax.imageio.ImageIO
import java.util.List
import java.io.File
import java.io.FileWriter
import java.io.BufferedWriter
import org.apache.pdfbox.rendering.ImageType



//define variables
def conn = g_dbConnections.systemConnection
def strNewGuid
def l_pdfPage = 1
File tempFile = null

def inputFile = g_record[strInputFileGuid] /* datafield file <file> */
int l_recId = g_record[strRecIdGuid].value  /* datafield (PK) (S) ID <integer> */

if(inputFile.hasValue() && inputFile.getFirstFile().getContentType()=="application/pdf"){
	try {
		//get file from Intrexx
	 	def pdfFile = new File(inputFile.getFirstFile().getPath())

		// load PDF document
		PDDocument document = Loader.loadPDF(pdfFile)

		// get all pages
		pages = document.getDocumentCatalog().getPages()

		PDFRenderer pdfRenderer = new PDFRenderer(document);

		// for each page
		for (int i = 0; i < pages.getCount(); i++) {
			// single page
			PDPage singlePage = pages.get(i)

			// to BufferedImage

			BufferedImage buffImage = pdfRenderer.renderImageWithDPI(i, 300, ImageType.RGB);

			 /*use for quality configuration*/
			//BufferedImage buffImage =  singlePage.convertToImage(BufferedImage.TYPE_INT_BGR, 70)


			// write image to temporary file

			tempFile = File.createTempFile("pdfImage", ".png")
			ImageIO.write(buffImage, "png", tempFile)

			//generate new Guid for insert query
			strNewGuid = newGuid()

			//insert into child table
			g_dbQuery.executeUpdate(conn, "INSERT INTO ${strImageDatagroup} (${strVariableFKLID}, ${strVariableImageRecId}, ${strVariablePage}) VALUES (?, ?, ?)") {
				setInt(1, l_recId)
				setString(2, strNewGuid)
				setInt(3, l_pdfPage)
			}

			//save image to Intrexx
            		g_dgFile.copy(guid: strImageFileGuid, id: strNewGuid, file: tempFile.getAbsolutePath(), replaceMode: true, triggerWorkflow: false)

			//next l_pdfPage as integer
			l_pdfPage = l_pdfPage +1

			tempFile.delete()

	    }
			document.close()
	}
	catch (IOException e) {
		g_log.err(e)
	}
	finally
	{
	    //delete pdfbox temp files
	    File path = new File("internal/tmp/")
   		for (File file : path.listFiles()) {
   			if (file.getName().endsWith(".tmp") && file.getName().startsWith("+~")) {
        				file.delete()
      		}
   		}
	}
}
